Motor and Application:

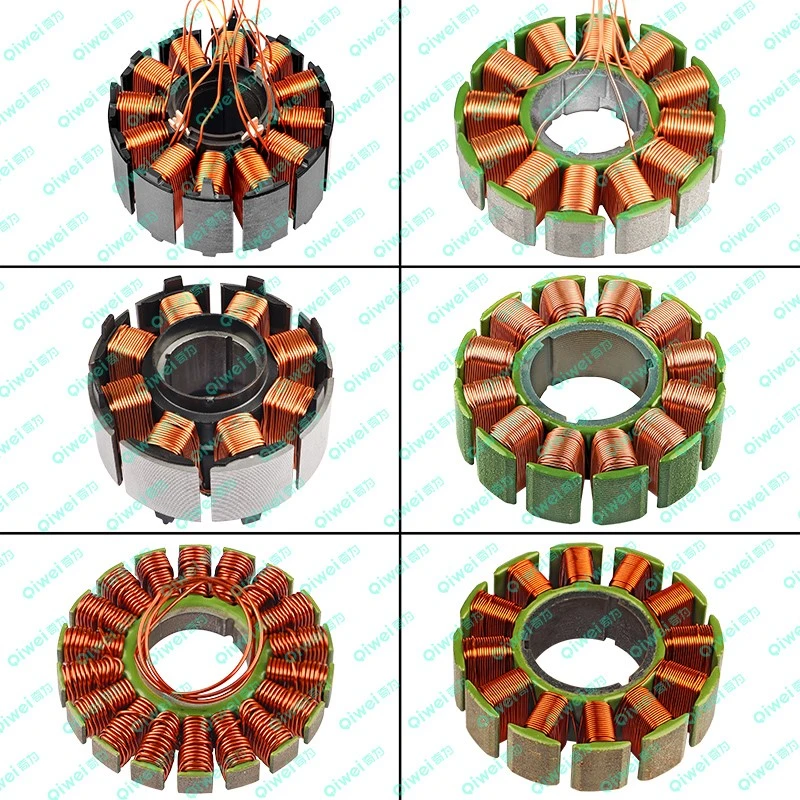

This machine can be universally used for the precision winding of the following motor types:Drone, Medical equipment, Robot and household appliances, electric car..etc..
Technical Parameters:
|
Supply Voltage |
220V ±10% 50HZ |
|
Source Pressure |
0.45-0.7Mpa |
|
Rated Power |
2.5KW |
|
Winding Speed |
Max 1500RPM |
|
Counting Accuracy |
±0.01Circle |
|
Angular Accuracy |
0.1° |
|
Wire Arrangement Precision |
0.01mm |
|
Optimum Winding Diameter |
0.1-0.8mm |
|
Suitable Height |
Within 50mm |
|
Applicable Outer Diameter |
30-100mm |
|
Overall Dimension |
1200*1000*1600mm |
|
Machine weight |
550KG |
Machine and Function overview:

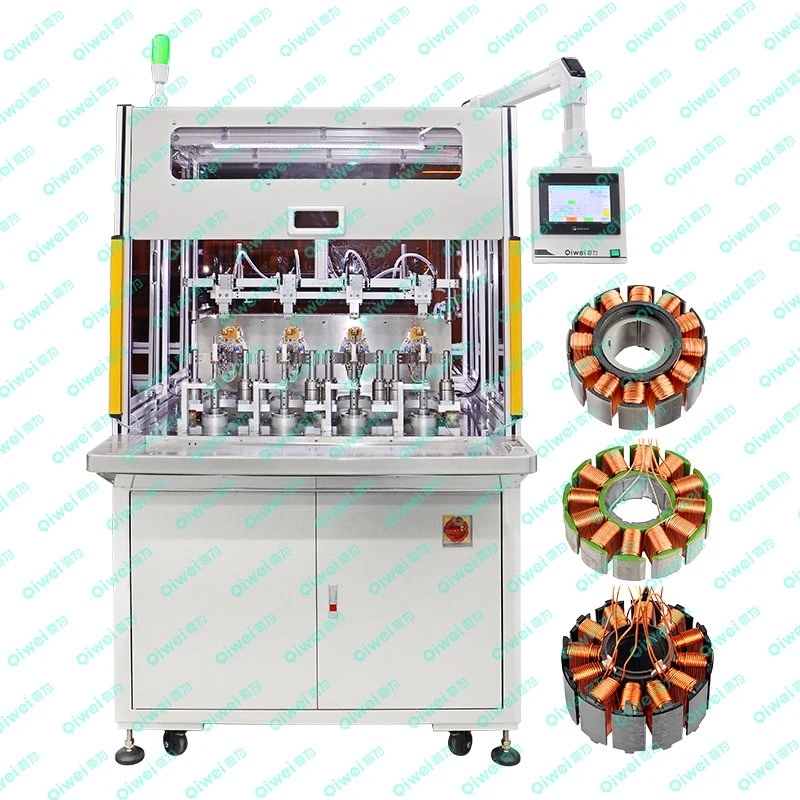

This versatile 4-station Robot motor winding machine is designed to meet the diverse demands of industrial motor manufacturing, with a particular focus on producing high-performance motors for robotic systems-where reliability, precision, and adaptability are critical. It excels at handling multi-pole brushless products, which are widely used in robots, appliances, and small industrial devices, thanks to its ability to switch between conventional and precision wire arrangement dies with minimal effort. This flexibility allows it to adapt to different wire handling requirements, from standard winding tasks for basic motors to high-precision winding for complex robot motors that demand tight tolerances.
The machine's large program storage capacity is another key advantage for robot motor production. It can store a wide range of winding programs, each tailored to specific robot motor models, so operators can quickly recall settings when switching production runs-eliminating time-consuming re-adjustments. This is especially valuable for factories that produce multiple motor types, including those for robotic arms and automated equipment, as it enables seamless batch transitions. The independent wire mold shaft mechanism enhances the stability of enameled wire entering slots, ensuring consistent quality regardless of the robot motor size or design, and aligns with its functionality as a robotic motor coil winding equipment.
Additionally, its robust build ensures it can handle continuous operation, whether manufacturing small robot motors or larger industrial-grade ones. By combining adaptability, precision, and reliability, this Robot motor winding machine becomes a flexible, high-value addition to production lines focused on robotic and industrial motor manufacturing.
